Web Dashboards

Web Dashboards

AccessPatrol has 7 dashboards, giving you visibilities on file operations and device activities from your entire organization. With AccessPatrol’s web dashboard, you will gain the insights you need to enforce your removable media policy with great confidence.

These dashboards work in tandem with AccessPatrol’s USB activity reports to give you advanced insights into how peripherals such as portable storage devices are being used in your organization.




Dashboards:

  • Overview
  • Files
  • Devices
  • Groups (Users)
  • Users
  • Groups (Computers
  • Computers

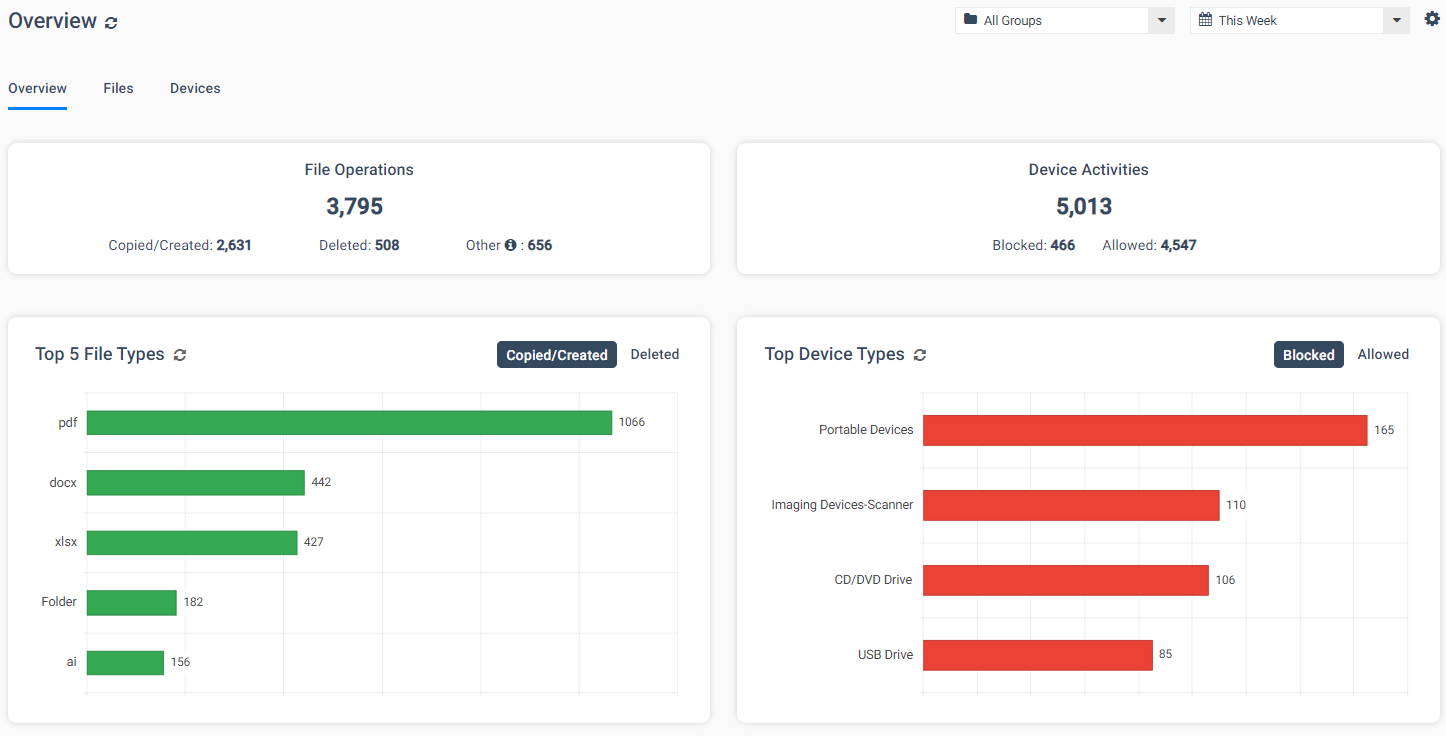

Overview

This dashboard provides a quick glance at your team’s file operations and device activities. Drill down by department/user to gain further insight.

Charts:

  1. File operations and device activities scorecards
  2. Top 5 file types copied/created and deleted
  3. Top 5 device types blocked and allowed
  4. Top 5 file operations by groups/computers/users
  5. Top 5 device activities by groups/computers/users
  6. Activity log for file operations and devices activities

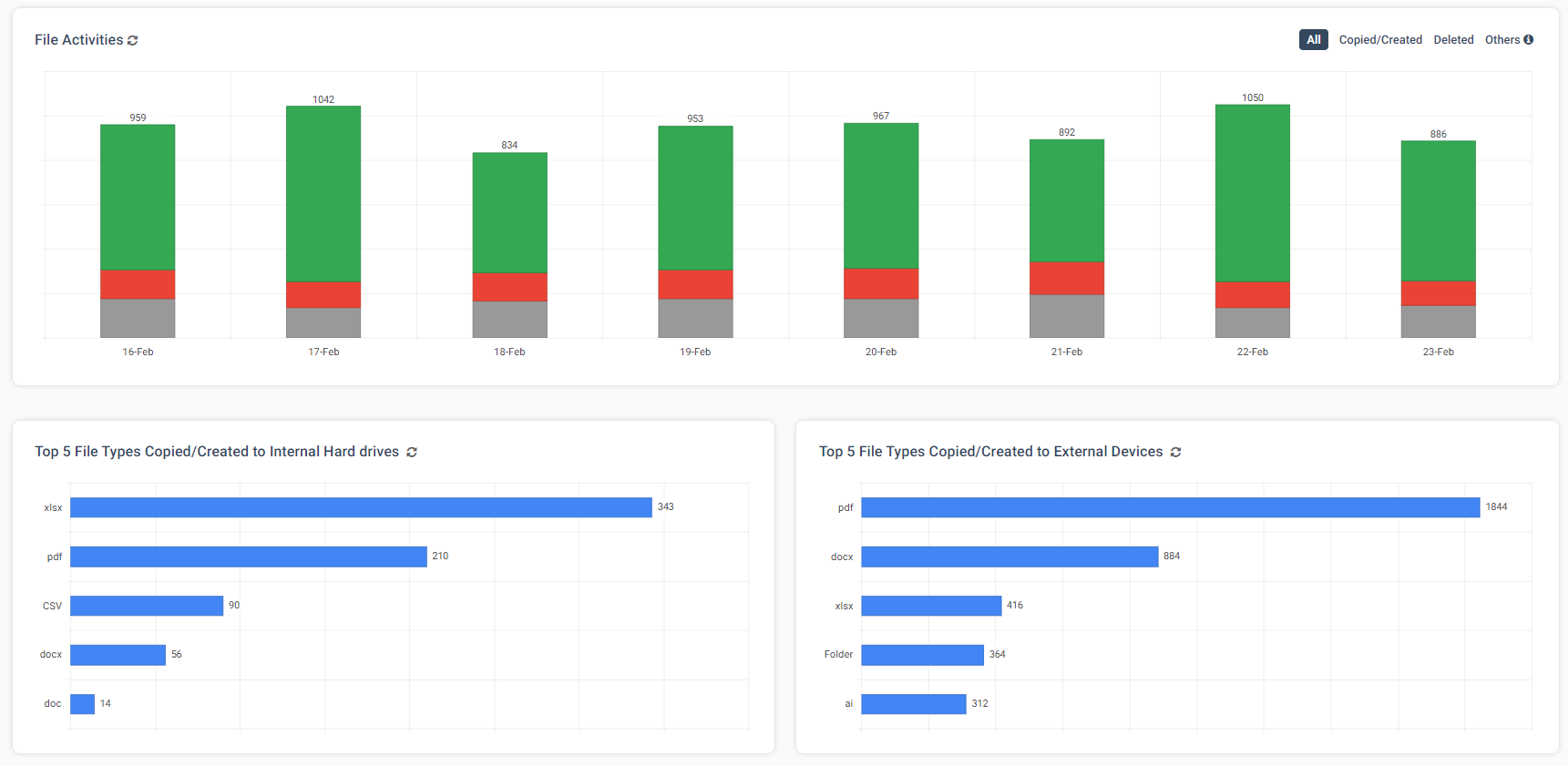

Files

This dashboard provides top-level information about your organization’s file operations based on your users’ file activities. Gain insight on files being transferred onto your users’ internal hard drives. Audit file transfers and files deleted based on file names, destination path and file types.

Charts:

  1. File activities graph
  2. Top 5 file types copied/created to internal hard drives
  3. Top 5 file types copied/created to external devices
  4. Top 5 files copied/created by groups/computers/users
  5. Top 5 files deleted by groups/computers/users
  6. Activity Log

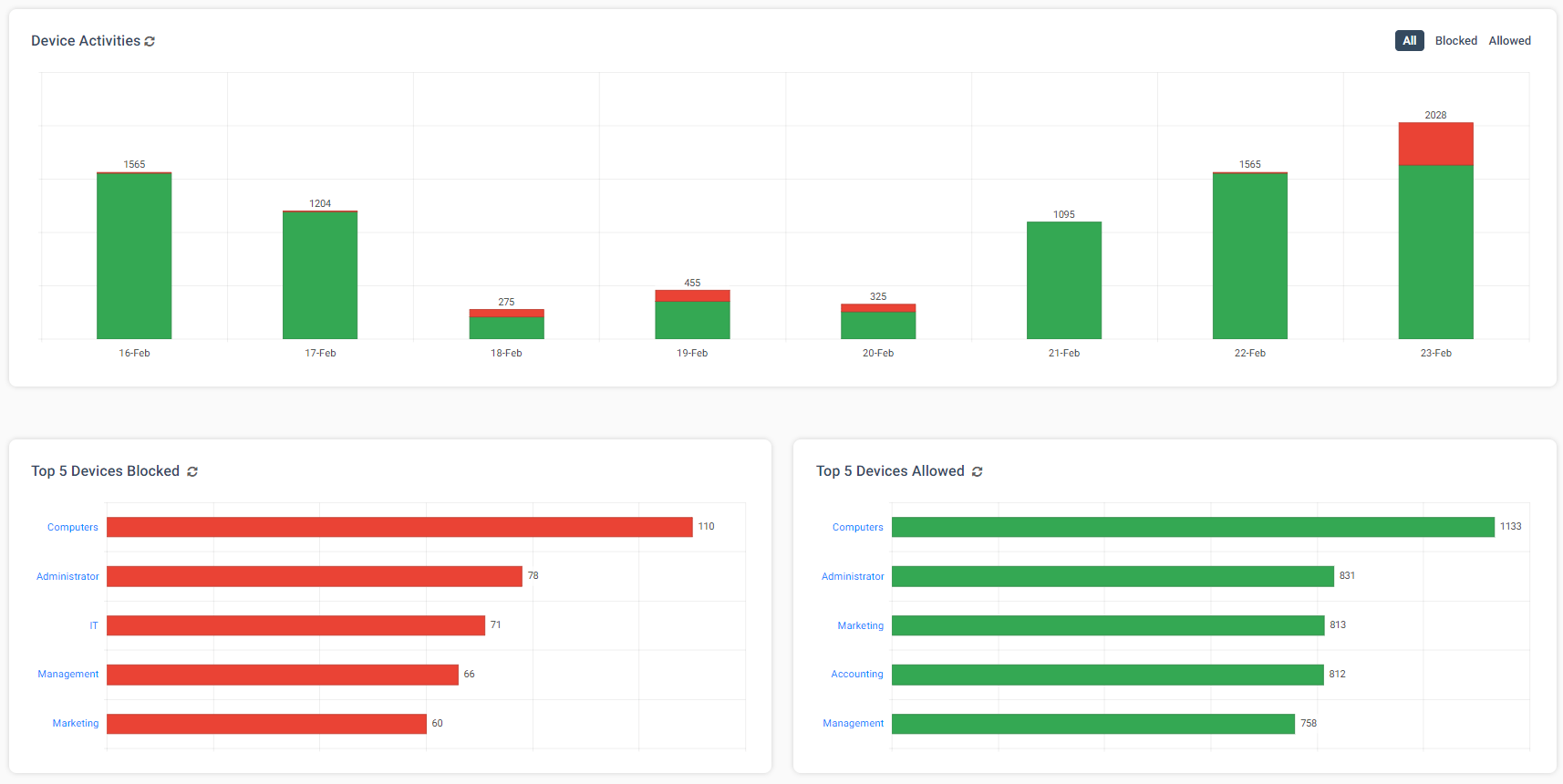

Devices

This dashboard provides top-level information about your organization’s device activities. You can drill down to see what devices were blocked and which authorized devices were allowed.

Charts:

  1. Device Activities
  2. Top 5 devices blocked
  3. Top 5 devices allowed
  4. Activity Log

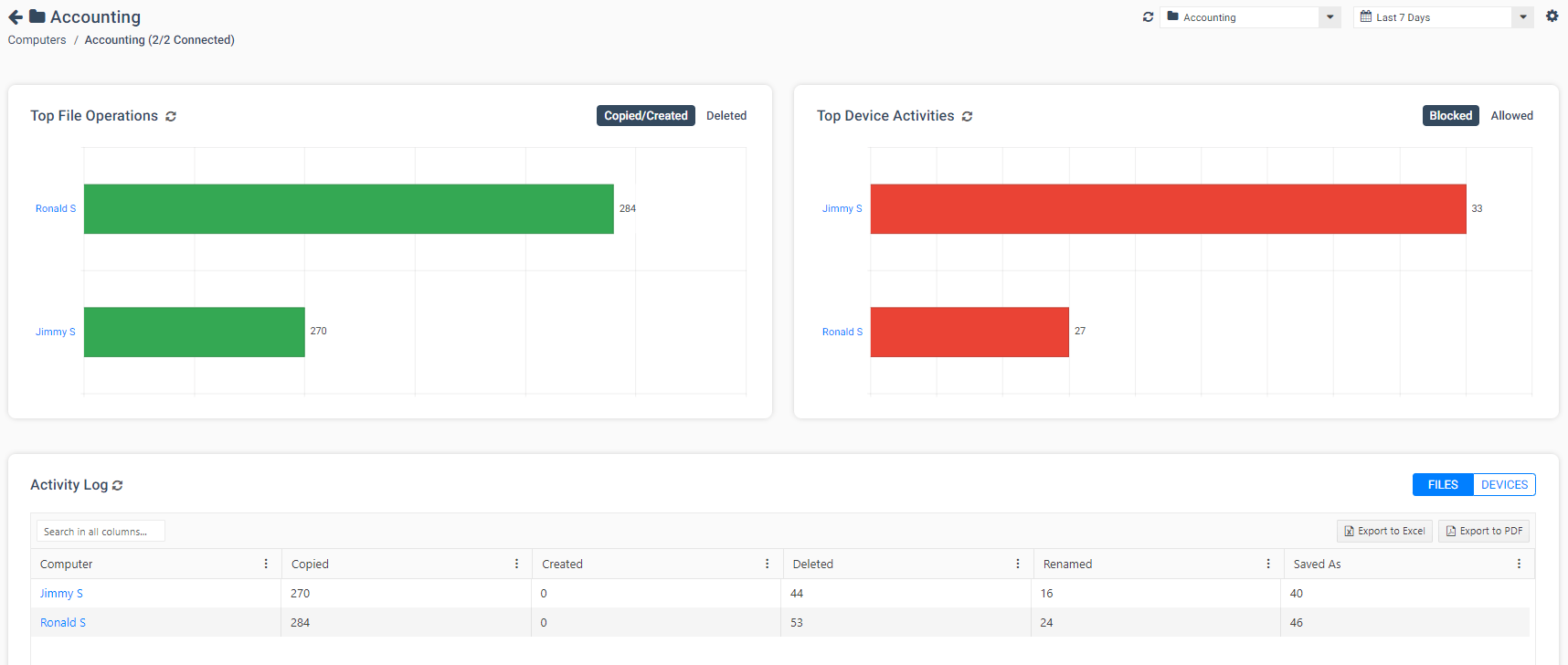

Groups Dashboard

This dashboard provides a summary of your group’s computer activities, showing you the top 5 users with the most file operations and device activities along with a detailed activity log.

Charts:

  1. Top 5 file operations by users
  2. Top 5 device activities by users
  3. Activity Log

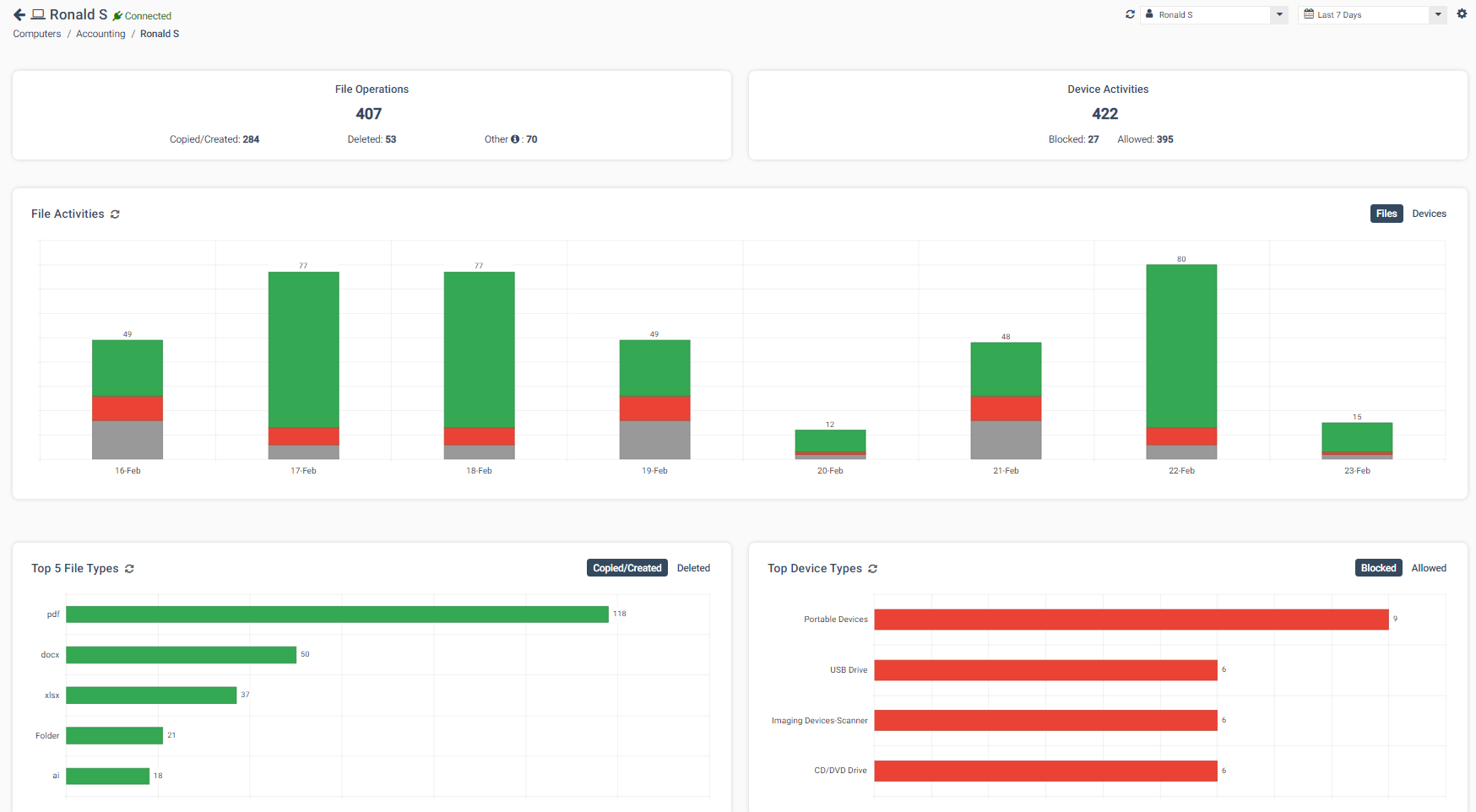

Users/Computers Dashboard

This dashboard provides detailed information about each user/computer in your company. On the top, you can see the user’s connection status (logged in/logged off or connected/disconnected) along with the group that they belong to.

Charts:

  1. File operations scorecard
  2. Device activities scorecard
  3. Files activities graph
  4. Device activities graph
  5. Top 5 file types
  6. Top 5 device types
  7. Activity Log – Files
  8. Activity Log – Devices

Using the Dashboard

On each dashboard page, you have the option to change the selection based on the groups/users/computers that you want to display. You can also change the date range using the date picker.

Groups/Users/Computers Selections
Choose all groups to see reports on your entire organization. Filter down to specific groups and users to gauge how your departments are performing.

The charts on the dashboards will change depending on your selection. For example, if you select groups, the Top 5 Active Time charts under the Overview will display the top 5 groups. Whereas, when you select all users, that chart will display your top 5 users.

Date Picker
Change the date to compare how your organization is performing based on your date range. Presets buttons are available for quick access to common date ranges such as today, this week and last 30 days.


Analyzing data using the Activity Log

Each dashboard contains an activity log at the bottom of the page to give you detailed information on your organization’s activities.

  • Sorting: every column is sorted. Click on the header to sort the data.
  • Search: use this to narrow down the results. This is especially useful in detailed tables where you want to search for activities on specific websites or applications.
  • Optional Columns: some tables contain optional columns that are hidden by default. Click on the 3 dots to reveal these optional columns.
  • Export to PDF/Excel: to take your data further, you can export them in .PDF or .xlsx format to perform your own data analysis.
  • Filtering: filter the values from a column by using filtering operations

Get more insights with the ability to track downloads and uploads

As of v9.0.0, AccessPatrol dashboards can track select cloud services and network drives.

Learn more here


Dashboard Settings Menu

Located on the top right hand corner of the page, there is a gear icon (settings) that lets you configure AccessPatrol settings.

  • More Reports: a shortcut that takes you to the legacy report window
  • Device Type Filter: exclude certain device types from the dashboards
  • Exclude Device & File Name/Types: a shortcut that takes you to the setting to exclude devices and file names from your dashboards. Learn more
  • Delete Data: a shortcut that takes you to the data deletion tool
